PRO 1000W

The PRO 1000 is a sealed series of high frequency battery charger with wide-range AC input adapting to any single-phase grid worldwide with a peak efficiency of 93%, complying with CEC. The charger can be programmed for charging various types of battery packs.It is widely used for floor machines, golf carts, utility vehicles, pallet trucks, aerial work platforms,tow tractors, etc.
Highlighted Features:
  • User friendly LED indicators for AC source, battery status, charging, error.
  • Cooling convection cooling Auto-recharge for low voltage in maintenance mode.
  • OEM customizable & field replaceable AC / DC cabling.
  • Lithium Additional portable handle available.
1 IDEA Award FeaturedFinalist.png
2 ORIGINAL.png
2 ORIGINAL.png
4 ECO.png
6 IP66.png
7 Global Replacement Warranty.png
3 GUARANTEED.png
4 ECO.png
5 SEALED.png
6 IP66.png
7 Global Replacement Warranty.png
Dimensions & Parameters
Safety & EMC
Battery Type Supported
Customization Flexibility
Clients & Case Study
Application Of The Product
Product Data Download
Related Recommended Products
Dimensions & Parameters


DC Output

24VDC 36VDC 48VDC
Max. DC output voltage 36V 54V 72V
Max. DC output cuttent 33A 23A 18A
Max. DC output power 1000W
Max. C3 interlock current 7A
Battery type Lead acid (wet / AGM / gel), lithium
Reverse polarity Electronic protection with auto-reset
Short circuit Electronic current limit


AC Input
AC input voltage range 85-270 VAC
Nominal AC input voltage 100-240VAC
Nominal AC input frequency 50 / 60Hz
Maximum AC input current 14.5A
Nominal AC input current 12A @ 100VAC 10A @ 120VAC
5.5A @ 230VAC 5.5A @ 240VAC
Power factor >0.99 @ 120VAC >0.98 @ 230VAC


Regulatory
Effciency

90% at full load, 120 VAC, 48 VDC | 92% at full load, 240 VAC, 48 VDC

California Energy Commission (CEC) compliant

Safety (LVD) UL1564, CSA 107.2, EN 60335-2-29
Emissions (EMC) FCC Part 15 / ICES 003 Class A, EN55011, EN 61000-6-4
Immunity (EMC) EN 61000-3-2, EN 61000-3-3, EN 61000-6-2


Mechanical

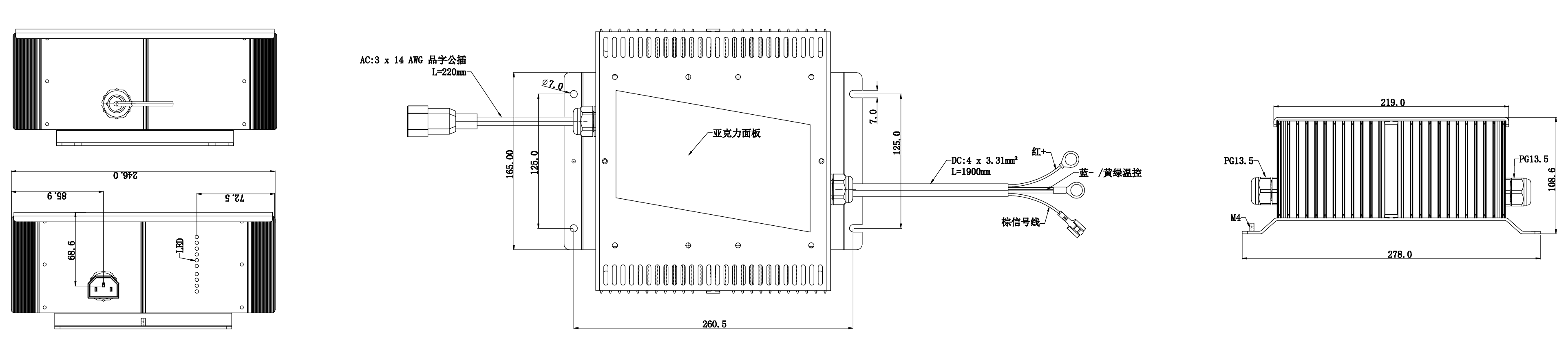

Dimensions L278 x W246 x H108.6 mm
Weight 5.5 kg
AC input connector IEC320 / C14 (requires country-specifc cord)
DC output connector M6 threaded fasteners for ring terminals (field replaceable)
Service port Sealed (IP66) USB 2.0 Host Port (Type A) with dust cover
Mounting holes 6.4mm (1/4”) diameter slots
Cooling

convection cooling


Environmental
Enclosure IP66 (NEMA4)
Operating temperature -10°C to +65°C Derated at >40°C
Storage temperature -40°C to +85°C


Safety & EMC —— Certificate Diagram
Battery Type Supported
Generic AGM / GEL
Generic AGM / GEL
Generic Flooded / Wet
Generic Flooded / Wet
LiFePO4
LiFePO4
Li-ion
Li-ion
Lead acid or lithium batteries from all brands, like Exide, Trojan, Discover, Deka, etc.
Lead acid or lithium batteries from all brands, like Exide, Trojan, Discover, Deka, etc.
Customized batteries
Customized batteries
Customization Flexibility
Clients & Case Study
Application of the product
Electric Motor
Electric Motor

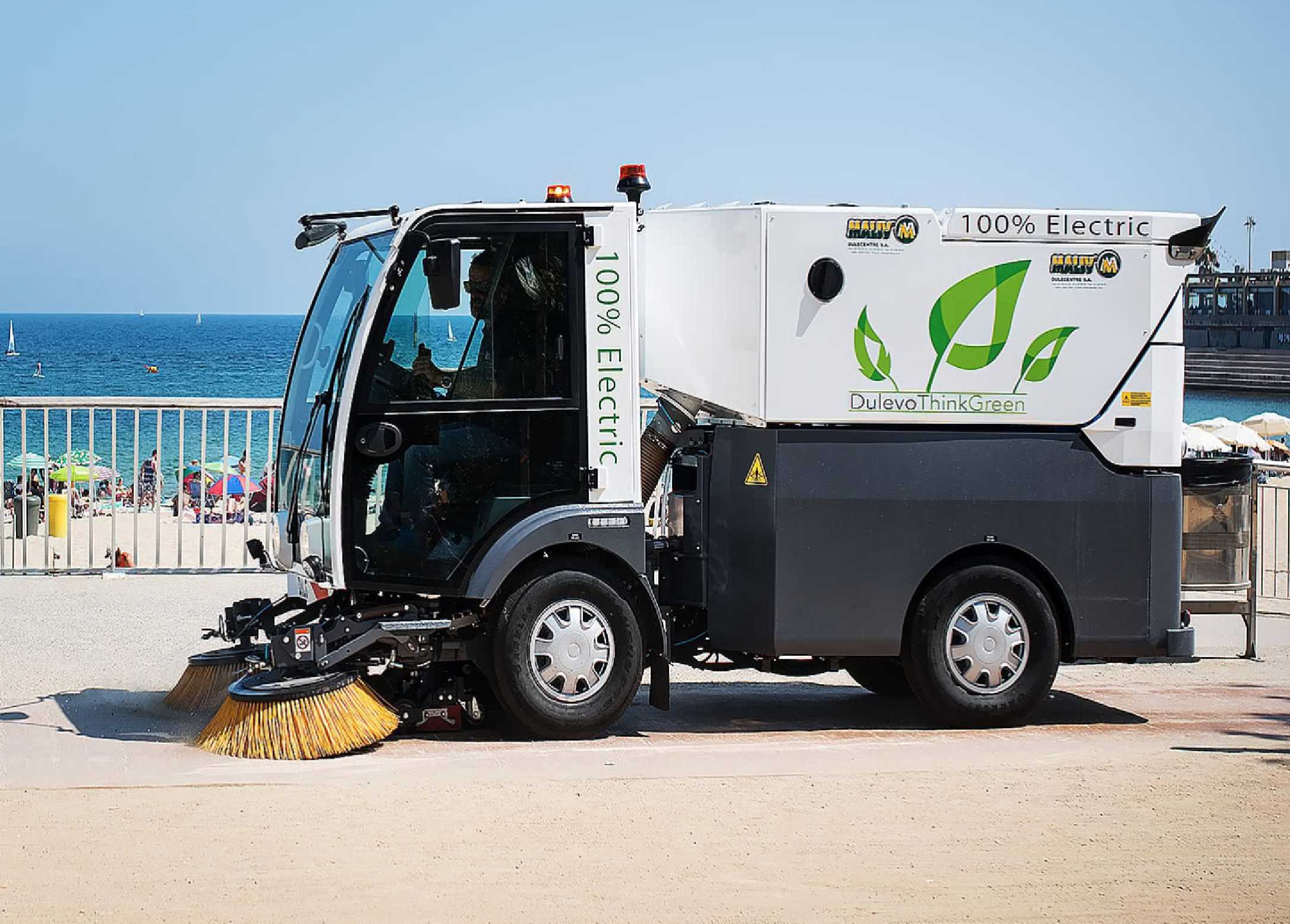

Electric Cleaning Equipment
Electric Cleaning Equipment

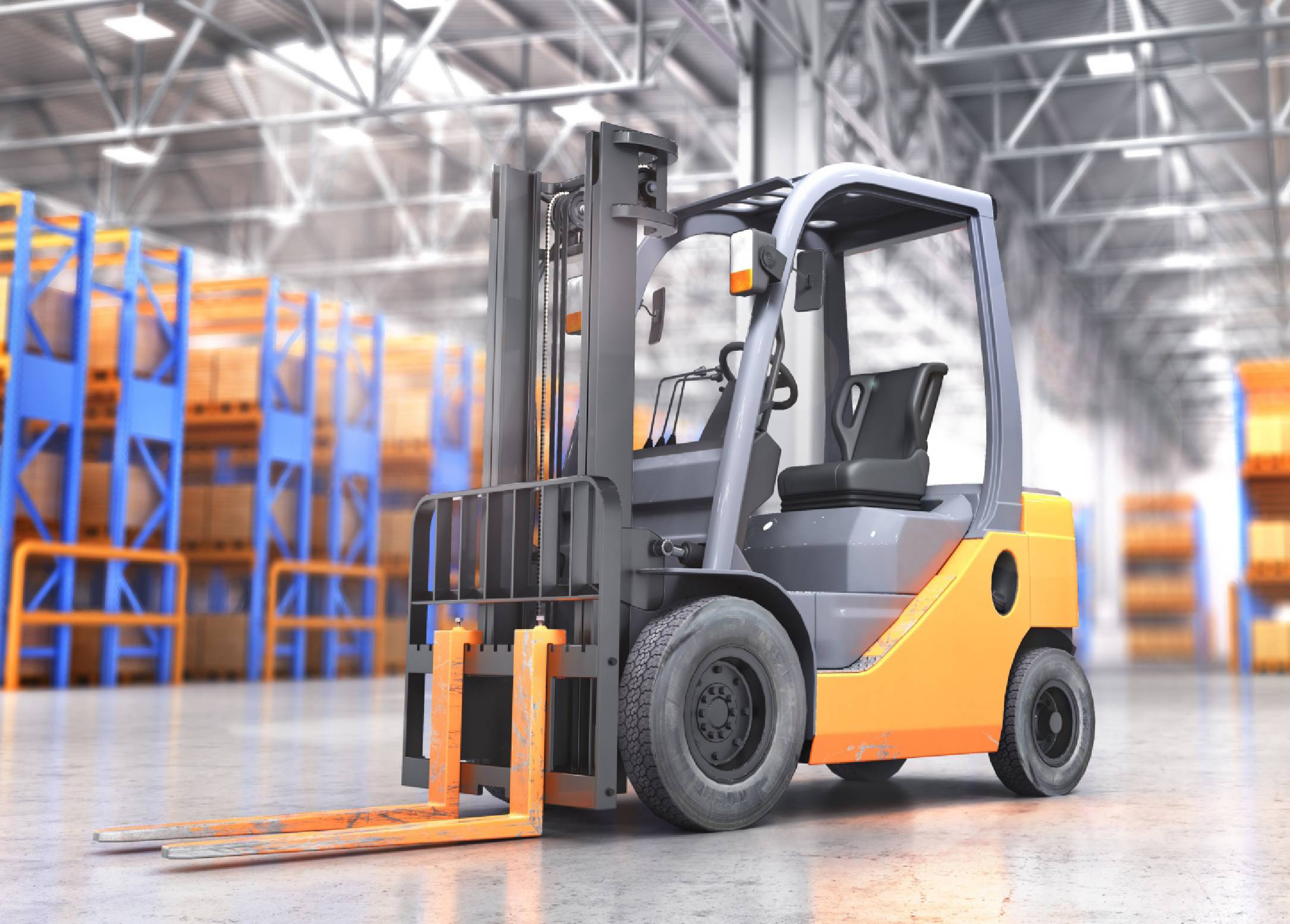

Material Handling Equipment
Material Handling Equipment
Electric Construction Machinery
Electric Construction Machinery
Electric Aerial Work Platforms
Electric Aerial Work Platforms
Electric Robots
Electric Robots
Other Electric UAVs and Robots
Other Electric UAVs and Robots
Electric Lawn Care Equipment
Electric Lawn Care Equipment
Electric Snow Sports Equipment
Electric Snow Sports Equipment
Electric Watering Sports Equipment
Electric Watering Sports Equipment

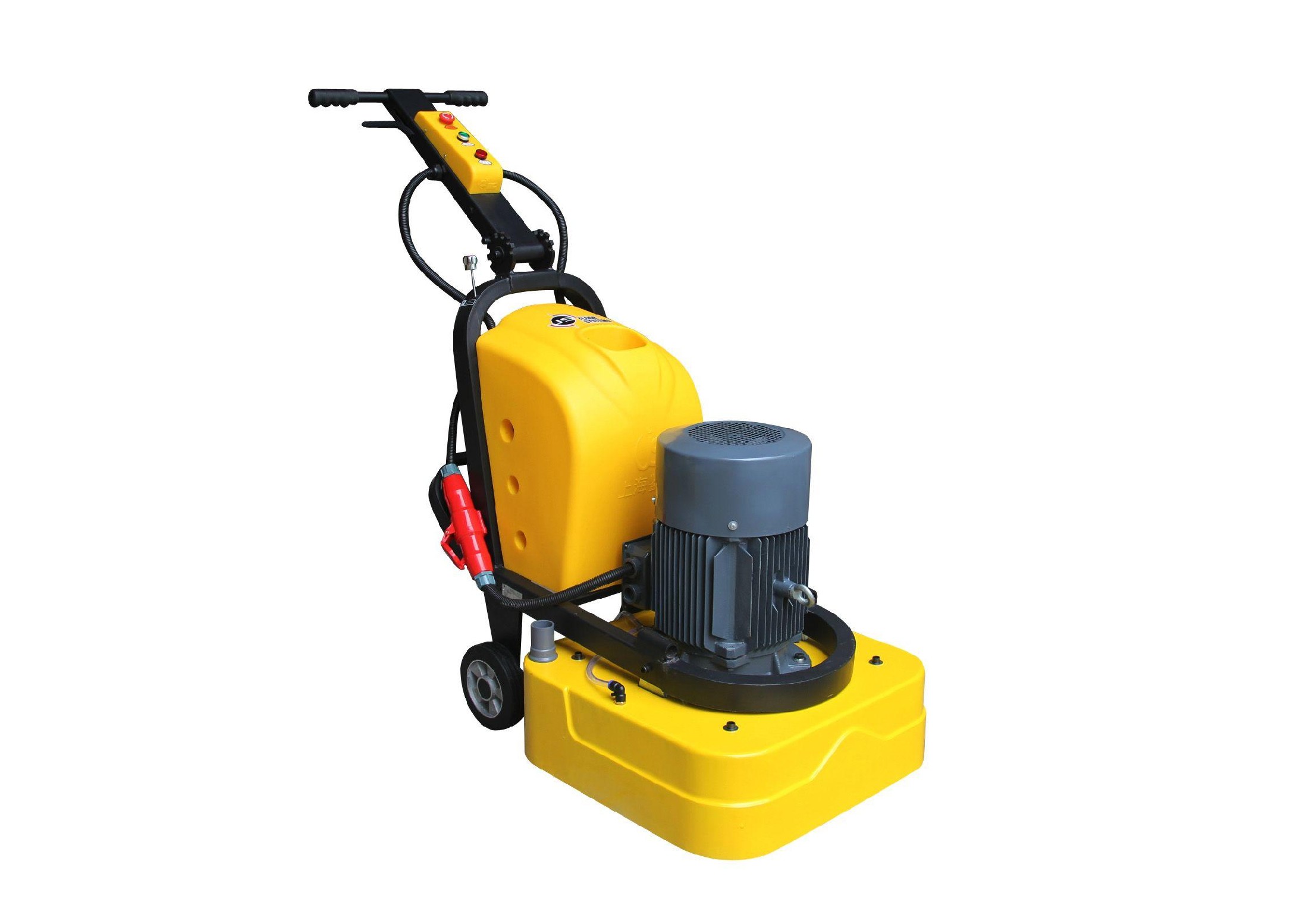

Ground grinder
Ground grinder

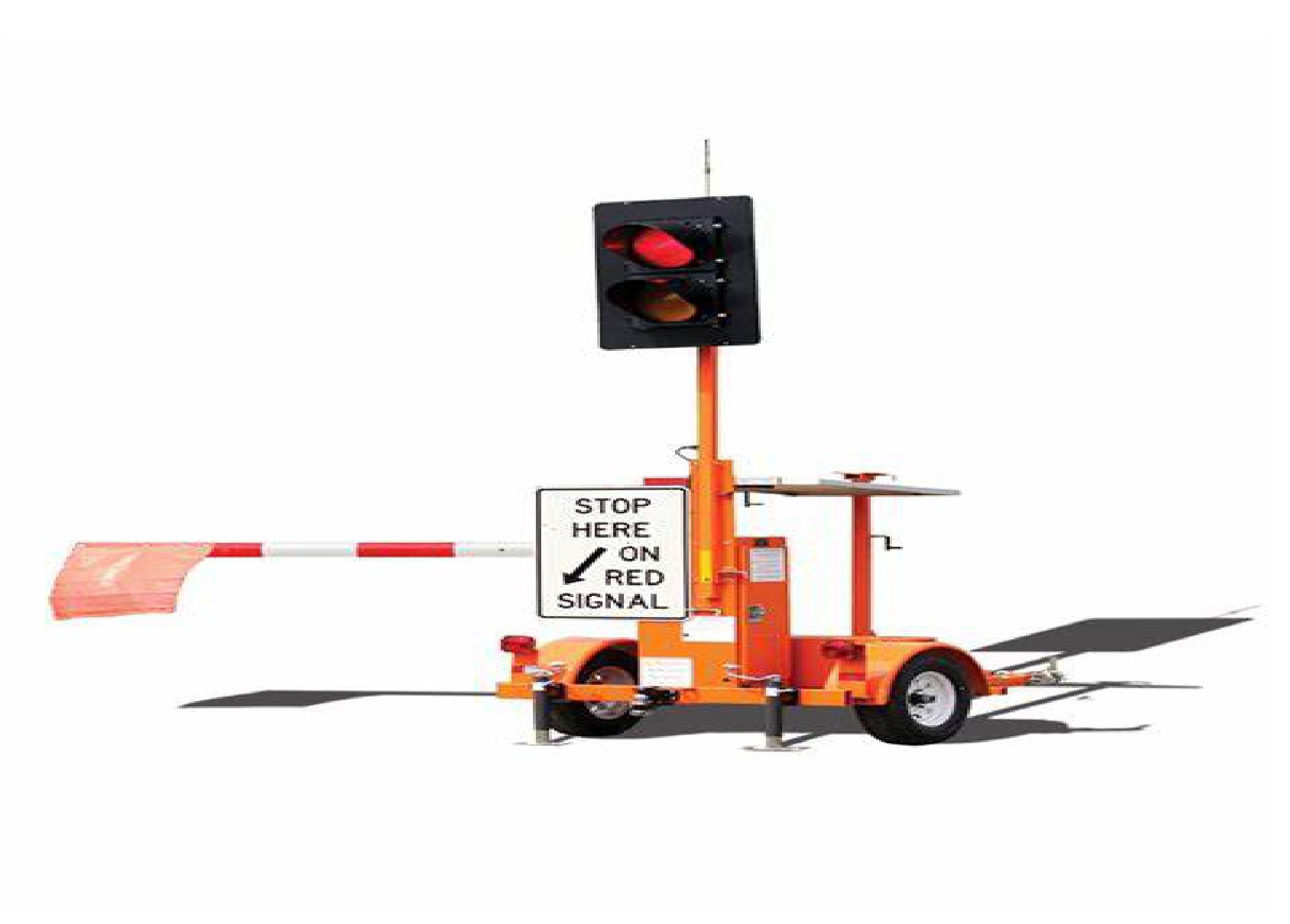

The Heavy Duty Portable Traffic Signal
The Heavy Duty Portable Traffic Signal

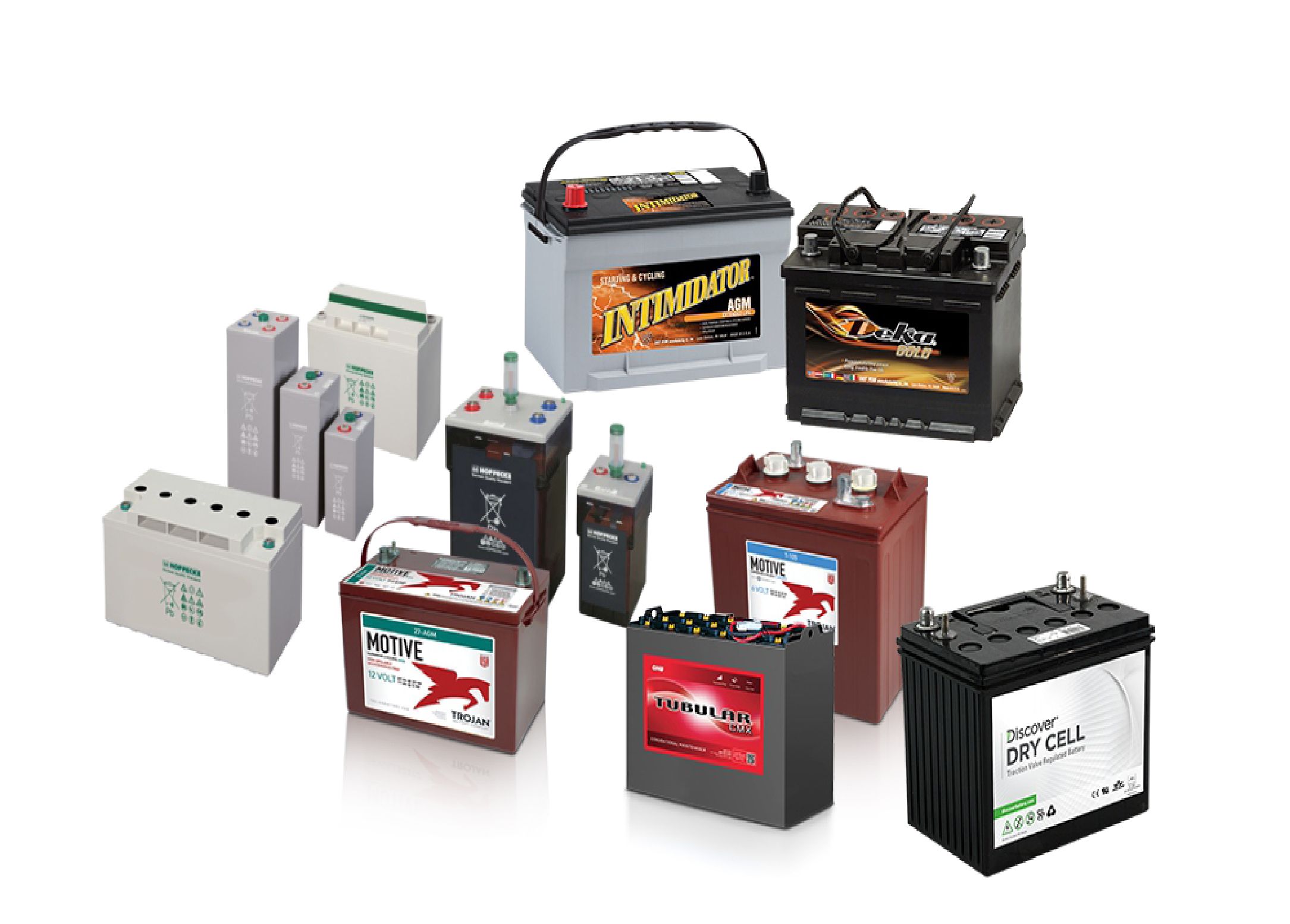

Batteries
Batteries
